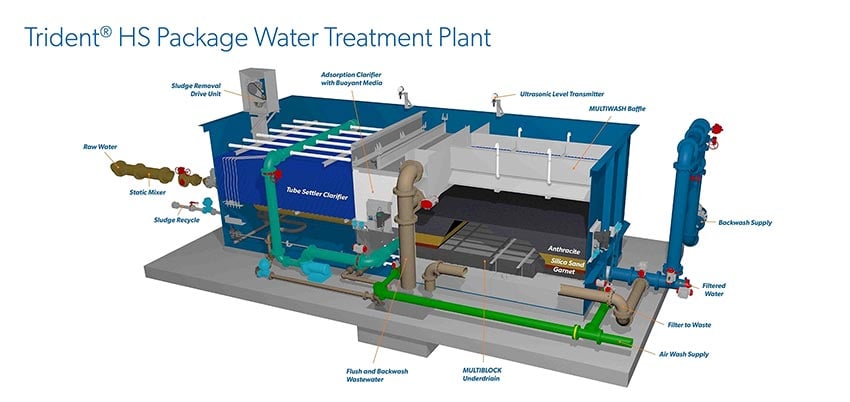

Trident® HS Package Water Treatment Plant

The Trident® HS package water treatment plant provides multi-barrier protection for difficult-to-treat surface water, groundwater, industrial process water, and tertiary wastewater. The multi-barrier design consists of packaged high-rate settling, adsorption clarification, and mixed media filtration.

Individually and collectively, the multiple treatment stages of the Trident HS system maintain superior effluent performance.

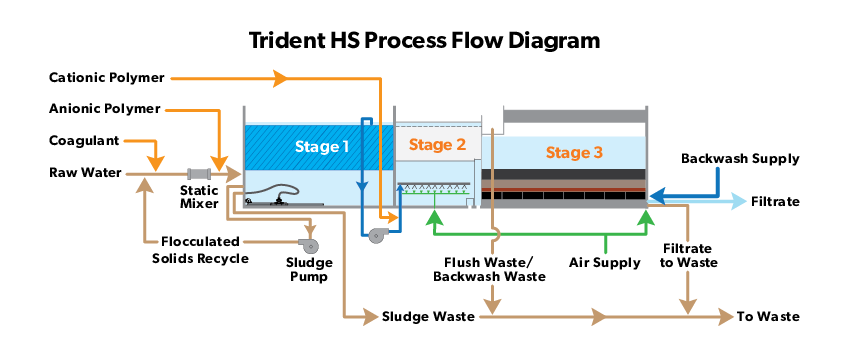

Multi-Barrier Protection

Stage 1 - Chemical Conditioning / Tube Settling

Before water enters the treatment unit, coagulant and polymer are added to begin the coagulation and flocculation process. A sludge recycle flow is introduced near the coagulation point to aid in floc formation. This recycle flow also serves to maintain a steady-state solids concentration, minimizing variations in influent solids concentration. For plants incorporating enhanced coagulation, the tube clarification stage reduces influent solids concentration prior to the Adsorption Clarifier® stage, leaving the majority of coagulated particles in the tube settler clarifier. For cold water conditions, the tube clarifier provides added detention time.

Stage 2 - Enhanced Clarification

A buoyant adsorption media bed provides second-stage clarification. The Adsorption Clarifier media further reduces solids prior to filtration. Captured solids are periodically flushed from the clarifier using an air / water combination. Tube-clarified water is used for the flushing process.

Stage 3 - Mixed Media Filtration

Mixed media filtration removes the remaining solids using a bed of anthracite, sand, and high-density garnet supported by a direct retention underdrain. For improved filtration, the media surface area per volume increases from top to bottom and the backwashing process incorporates simultaneous air /water backwashing and baffled washtroughs to prevent media loss and assure clean media.
