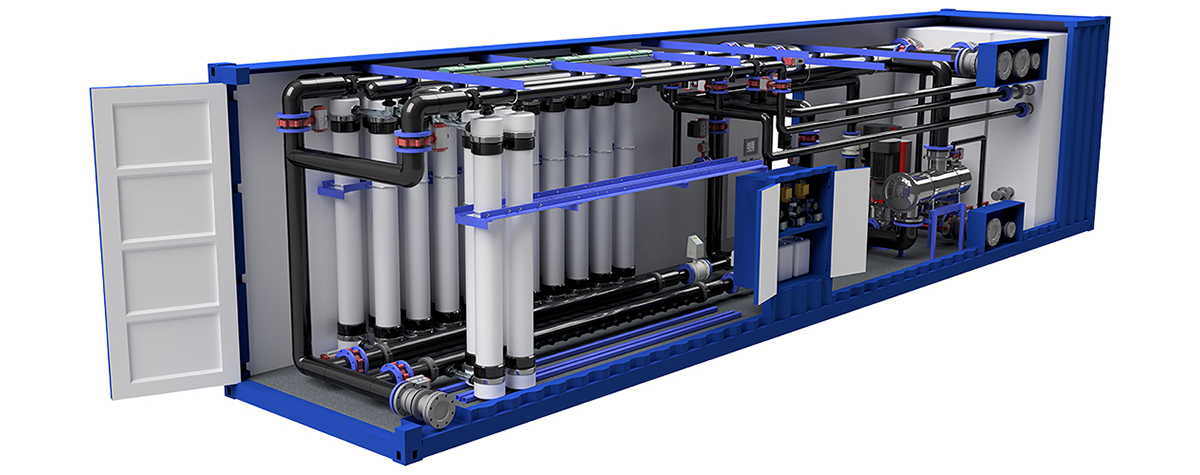

Mobile Containerized Ultrafiltration Systems

Flexible Systems for Potable and Process Water Treatment

Combining the efficiency of ultrafiltration technology with the flexibility of portable, containerized units, our UF systems are designed to provide high-quality water treatment in a variety of settings. From municipal emergency response to industrial applications and remote operations, they simplify setup and operation while reducing the need for additional infrastructure or capital investment.

These mobile and highly automated systems are a pre-packaged solution that can be scaled up to 36 modules, allowing for process expansion while ensuring reliable and efficient water treatment.

Benefits and Features

Applications

  • Industrial process water
  • Wastewater reuse
  • Municipal drinking water
  • Mine water remediation
  • NF / RO pretreatment

Features

  • 700 gpm maximum flow rate
  • 1 x 100% feed pump
  • Filtrate tank
  • Backwash supply tank with pump
  • With CIP system
  • pH & turbidity transmitters
  • Master control panel with HMI
  • Weatherproof to handle all environments

Benefits

  • Small footprint
  • Reduced downtime
  • Minimal setup time
  • Flexible contract time
  • Installation and operations expertise
  • No capital investment

Specifications

  • Flow Rate

    Max Hydraulic Flow Rate (per Container)
    820 gpm
    Min Hydraulic Flow Rate (per Container)
    400 gpm
    Design Flow Rate (per Container)
    750 gpm

  • Temperature

    Design Temperature
    35°C
    Instantaneous Flux (@ 35°C)
    34 gfd

  • Dimensions

    Container
    41'-6" L x 8' W x 9'-6" H

  • Weight

    Container (Shipping)
    25,000 lbs
    Container (Operating)
    55,000 lbs

  • Connection Sizes

    Influent
    6" 150# ANSI RF Flanges
    Effluent
    6" 150# ANSI RF Flanges
    Backwash Waste
    6" 150# ANSI RF Flanges

  • Miscellaneous

    Material of Construction
    Painted Carbon Steel (Container)
    PVC (Piping)
    Power Requirements
    480VAC / 60Hz / 3Ph / 250A
    Total Module Capacity per Container
    36
    Membrane Area per Module
    829 ft2
