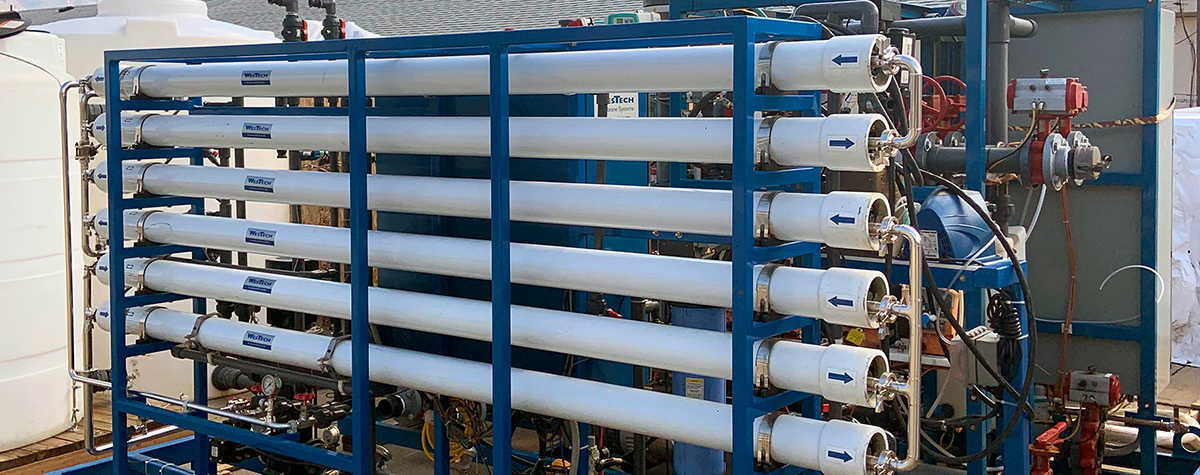

Mobile Reverse Osmosis

A Versatile Solution for Water Purification

When rapid deployment and high-quality, purified water is required, our mobile reverse osmosis (RO) units are a flexible and transportable alternative. These containerized, cutting-edge systems utilize the reverse osmosis process to remove contaminants by forcing water through membranes under pressure. The pre-packaged units include quick piping and electrical connections. Major equipment and valves are pre-configured for fully automated operations and the closed-circuit reverse osmosis (CCRO) design allows for process flexibility for flow and recovery rates.

Our mobile RO technology allows these units to be easily transported to both municipal and industrial settings.

Benefits and Features

Applications

  • Removal of total dissolved solids (TDS)
  • Turbidity removal
  • Removal of contaminants: selenium, sodium, chloride, lead, and PFAS
  • Industrial process water
  • Wastewater reuse
  • Municipal drinking water
  • Mine water remediation

Features

  • 700 gpm maximum flow rate
  • 1 x 100% feed booster pump
  • 1 x 100% high-pressure pumps
  • 1 x 100% circulation pump
  • Bisulfate, antiscalant, and acid chemical pumps
  • Air compressor
  • 5 micron cartridge filter
  • Pressure and conductivity transmitters
  • Master control panel with HMI

Benefits

  • Small footprint
  • Reduced downtime
  • Flexible contract time
  • Installation and operations expertise
  • No capital investment

Specifications

  • Flow Rate

    Max Permeate Flow Rate (per Container)
    700 gpm
    Min Permeate Flow Rate (per Container)
    350 gpm
    Design Permeate Flow Rate (per Container)
    750 gpm

  • Water

    Min Feed Pressure (Flooded Suction)
    0 - 75 psi
    Max System Pressure
    450 psi
    Recovery Rates
    75% - 98%

  • Dimensions

    Container
    40' L x 8' W x 9'-6" H

  • Weight

    Container (Shipping)
    32,000 lbs
    Container (Operating)
    40,000 lbs

  • Connection Sizes

    Feed
    8" 150# ANSI RF Flanges
    Permeate Outlet
    6" 150# ANSI RF Flanges
    Brine / Reject Outlet
    6" 150# ANSI RF Flanges
    RO Feed CIP
    8" 150# ANSI RF Flanges
    RO Permeate CIP
    6" 150# ANSI RF Flanges
    RO Brine CIP
    6" 150# ANSI RF Flanges
    Drains
    2" 150# ANSI RF Flanges

  • Miscellaneous

    Total Element Capacity per Container
    140
    Material of Construction
    Painted Carbon Steel (Container)
    PVC / Stainless Steel (Piping)
    Power Requirements
    480VAC / 60Hz / 3Ph / 250A
