Tailings Management With Paste Thickening

Water Recovery and Tailings Disposal Improved With Paste Thickening

Traditionally, waste disposal has been an environmental challenge for mining. But now the industry has begun to embrace paste, or thickened tailings, as a way to address the challenge. Paste thickening is different than conventional thickening. Specifically, it integrates critical parameters in the thickening, pumping, and disposal of tailings to handle the yield stress.

Managing paste thickener tailings provides benefits such as improved water recovery and dam safety, as well as more effective reclamation/re-vegetation. By taking into account the feed characteristics and standard bench-scale tests, our experience with paste thickener installations can help you make the right thickener selection.

Download the tailings flow sheets

Solutions and Applications for Tailings

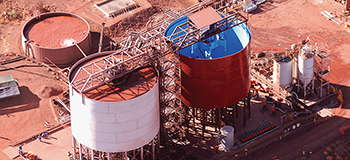

Tailings Paste Thickening

The advantages of paste thickeners in tailings circuits have been well-established for most minerals. The type of paste thickener underflow generally used for surface stacking of tailings is called “thickened tailings.” Thickened tailings are a suspension of solids that are relatively non-settling and non- segregating and that have a higher concentration and viscosity than those of conventional tailings.

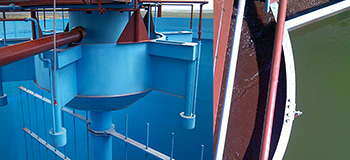

Common applications include a thickener with underflow pumps that are typically centrifugal and transfer pumps that can be either centrifugal or positive displacement.

Paste vs. Conventional

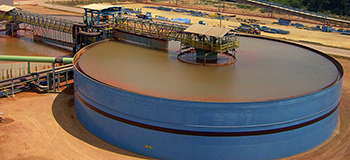

Paste thickeners thicken tailings to higher underflow solids concentrations than conventional and high-rate thickeners. For example, a tailings stream in an iron ore application could be thickened to 45-50 percent solids Newtonian slurry in conventional or high-rate thickeners. Conversely, the same tailings stream could be thickened to 65-70 percent solids non-Newtonian suspension using a paste thickener.

Water Recovery

Increased water recovery is important to many countries throughout the world due to the scarcity of fresh water. Recovering water from a tailing stream and using it again upstream in the plant reduces the amount of fresh water a mine needs. The cost of water is frequently one of the primary drivers for implementing a thickened or paste tailings disposal system.

Stacking

Surface stacking is the disposal of tailings on the surface of the ground. As a non-settling, non-segregating suspension of solids, minimal water is released into the impoundment and the stacked tailings dry significantly faster than conventional ponds where fines (slimes) segregate and can seal the surface of the deposit, preventing drying.

Stacking as a method of tailings disposal offers significant advantages over ponding. These advantages include: smaller impoundment area, less water in the pond, improved water or chemical recovery, a lower risk of containment breach, less groundwater contamination, and easier final reclamation of the site.

Extend Pond Life

When tailings ponds reach their capacities, the construction of a new dam is usually the solution for the deposition problem. This solution is very expensive and is not always an option if there are environmental, licensing, and space constraints.

By utilizing a paste thickener, the thickened tailings stream is deposited into the existing pond, increasing the life of the impoundment. The existing free water in the pond will be displaced and available for recovery and the higher concentration and drying properties of the paste will take up less space, extending the life of the pond.

Copper and Molybdenum Flotation Circuit

Molybdenum (moly) is often produced as a byproduct of copper mining. Copper is used for electronics, construction, and metal alloys. Moly is mostly used to make metal alloys, and as a catalyst.

As markets need copper and moly, their ores are separated, concentrated, and sold separately. This separation and concentration of copper and moly is called the “copper-moly flotation circuit.”

Flotation – Sulfides

Copper and moly are often found together as sulfides*†. Sulfides in solution will float or sink with the right combination of chemicals and gas bubbles (froth flotation).

These sulfide ores are separated from gangue (waste) material, then from each other, by froth flotation.

Copper/Molybdenum Flotation Circuit Steps:

1. Grinding

Grinding mills liberate the ore from the gangue material (non-ores: silica, organics), and reduce it to an optimal size for flotation. Water mixes in to form slurry. This helps both in the transportation and separation of the solids.

2. Bulk (Copper-Moly) Flotation

Both the copper and moly sulfide ores together (bulk) float in rougher flotation cells, then cleaner column cells, and often scavenger cells. These groups of flotation cells work together to give a high total yield of the bulk ore, which is sent on to be thickened.

3. Tailings (Gangue) Thickening/Dewatering

The underflow gangue (waste) from the rougher and scavenger cells flows to a tailings thickener to recover water for the process. Filters dewater these tails further, or a tailings pond stores them.

4. Bulk (Copper-Moly) Thickener

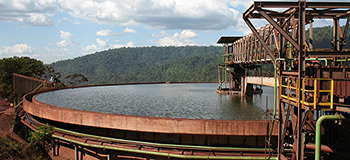

A high-rate thickener dewaters the bulk of copper-moly concentrate before more separation.

5. Moly Flotation

The moly flotation circuit has similar groups of flotation cells with chemicals to float the molybdenite (moly concentrate), and settle out the copper sulfides (copper concentrate).

6. Copper Thickening/Dewatering

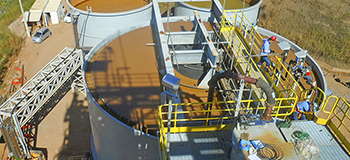

A high rate thickener thickens the copper concentrate. A vacuum drum (or other) filter dewaters the copper concentrate further before refining or storing until sale.

7. Moly Thickening/Dewatering

A high rate thickener thickens the moly concentrate. A vacuum drum (or other) filter dewaters the moly concentrate further before refining or storing until sale.

*Moly is found as Molybdenite (MoS₂), and copper is in various combinations with sulfur (e.g., Chalcocite (Cu₂S)).

†If copper is found as an oxide, it is not as easy to float. It is typically heap leached with sulfuric acid (dissolved), then removed from solution and concentrated by solvent extraction (SX) and electrowinning (EW).

Iron Ore - Magnetite

Iron Ore Concentration Process

Magnetite is mined in large chunks and is crushed into small particles by a series of crushers. After primary crushing with jaw crushers, secondary crushing with gyratory crushers, and tertiary crushing with cone or high pressure grinding rolls (HPGR), the ore is screened on vibrating screens to size the particles. The portion of this process that is still too large is sent to a rod mill.

Magnetic Separators

From the rod mill, the material proceeds to the cobber magnetic separators. Any non-magnetic material that has been released by the rod mill is separated and sent to the tailings thickener. Magnetite iron ore particles are separated by the magnetite separator from the gangue (waste material) minerals in the cobber magnetic separators. This material flows to the ball mill for further size reduction.

Material from the ball mill flows to the cleaner magnetic separators. Again, non-magnetic material that has been released by the size reduction process is sent to the tailings thickener. The magnetic component is pumped to hydrocyclones for sizing.

The finer material in the hydrocyclone overflow is sent to the desliming hydroseparator, while the course material in the hydrocyclone underflow is returned to the ball mill for regrinding. Polymer is added to the desliming hydroseparator to aid in the settling and thickening of the solids.

The desliming prepares the ore for flotation, discarding the ultrafine particles. The underflow from the desliming thickener is sent to a series of finisher magnetic separators to further purify the solution. The overflow from this thickener reports to the tailings thickener.

Reverse Flotation Cells

The separated magnetic material from the finisher separators is sent to reverse flotation cells for further separation. The flotation phases employ conventional large-size mechanical cells, in addition to flotation columns. This process uses starch (depressant) and amine (quartz collector) as reagents to promote the separation of the contaminant mineral (quartz) from the iron-bearing mineral.

The floated material from the flotation process is also sent to the tailings thickener. The underflow from the flotation process is sent to the concentrate thickener.

In the concentrate thickener, the purified slurry is thickened prior to being pumped to a disc filter. Again, the addition of polymer aids in the separation and thickening process. The disc filter uses vacuum to dewater the magnetite iron ore concentrate and discharges a relatively dry cake, which is sent for pelletizing. This process allows ore of very low magnetite content to be processed into a high quality product.

Tailings

The various reject streams are sent to a tailings thickener. In this unit, the solids are allowed to settle and are then pumped to a tailings pond for further settling and water reclamation. The overflow from the tailings thickener is sent to the water reclaim pond and then recycled back into the process.

Oil Sands - Open Pit

Oil Sands

Oil sands, tar sands or, more technically, bituminous sands, are a type of unconventional petroleum deposit. Oil and tar sands represent a vast wealth of energy reserves for the world, rivaling traditional sources in quality, availability, and the ability to meet the world’s needs for many years into the future. The technologies for extraction of this resource are increasingly efficient, and WesTech has worked with several companies on the leading edge of these efforts and is a ready partner for new projects and plant upgrades.

Open Pit Oil Sands Mining

The term “oil sands” is actually a bit of a misnomer. The deposits are saturated with a tarlike substance known as bitumen. A great deal of processing is required to separate this bitumen from the associated soil and other debris. One of the two most common ways to recover bitumen from oilsands is through open pit mining of deposits that lie near the surface. Oil sands deposits that lie within 75 meters of the surface are typically recovered via mining. This process is much the same as strip mining for coal or any other mineral.

Mining shovels remove the oil sand and load it into large mining trucks. These trucks carry the oil sands to mobile crushers. The crushed material is stockpiled for the next step.

Slurry

The oil sands broken up in these crushers are then fed to rotary breakers with the addition of hot water to remove rocks and other debris. The resulting slurry is pumped through a pipeline and chemicals are added as required. The slurry reports to a primary separator where it is classified into three distinct cuts – the overflow, the middle means, and the underflow.

The middle means are sent to flotation units where the floating material is recovered and returned to the head of the primary separator. The underflow from the flotation units is combined with the primary separator underflow and sent to a trash screen. The oversized material from the screen is washed and is returned to the mine via pipeline to fill in mined-out areas. The undersized material is sent to a further bank of flotation units. Floated material off the secondary flotation units is also recovered to the head of the primary separator, while the underflow is sent to the tailings thickener.

Bitumen

The overflow from the primary separator is sent for processing via steam heating of the bitumen. Bitumen is deficient in hydrogen. Bitumen must be upgraded to synthetic crude oil specification in order to be an acceptable feedstock for refineries. This is done by the addition of hydrogen or the rejection of carbon, or both. Upgrading uses natural gas as a source of heat and steam for processing and also as a source of hydrogen. Other hydrocarbons such as naphtha may also be used for upgrading.

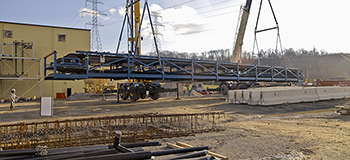

In the tailings thickeners, the suspended solids are settled to a sludge that is sent to a horizontal vacuum belt filter for dewatering. The filtrate from the horizontal belt filter is returned to the head thickener for reprocessing. The dried cake from the horizontal belt filter is sent to tailings piles or landfills for disposal.

Overflow

The overflow of the tailings thickener is water that is recovered for recycling back into the circuit. This is not solely due to restrictions on water usage. It is therefore critical that treatment processes involving water recovery in reuse are employed in this application. The combination of tailings thickener(s) and vacuum dewatering equipment results in maximum water recovery.
